Hotel / Restaurant Series


This series of lenses is mainly designed to enhance the optical effect of LED lamps

in hotels, restaurants, etc.


The main light spot of the lens of this product is fuller in light distribution, the entire

light spot is more uniform, and the transition is soft suitable for the change of the

front ring of the lamp, the afterglow is not layered when the lampshade and other

components are mobilized


It is equipped with special LED and lens holder reflector bowl, which is convenient to

assemble, high efficiency, and protect the LED intact

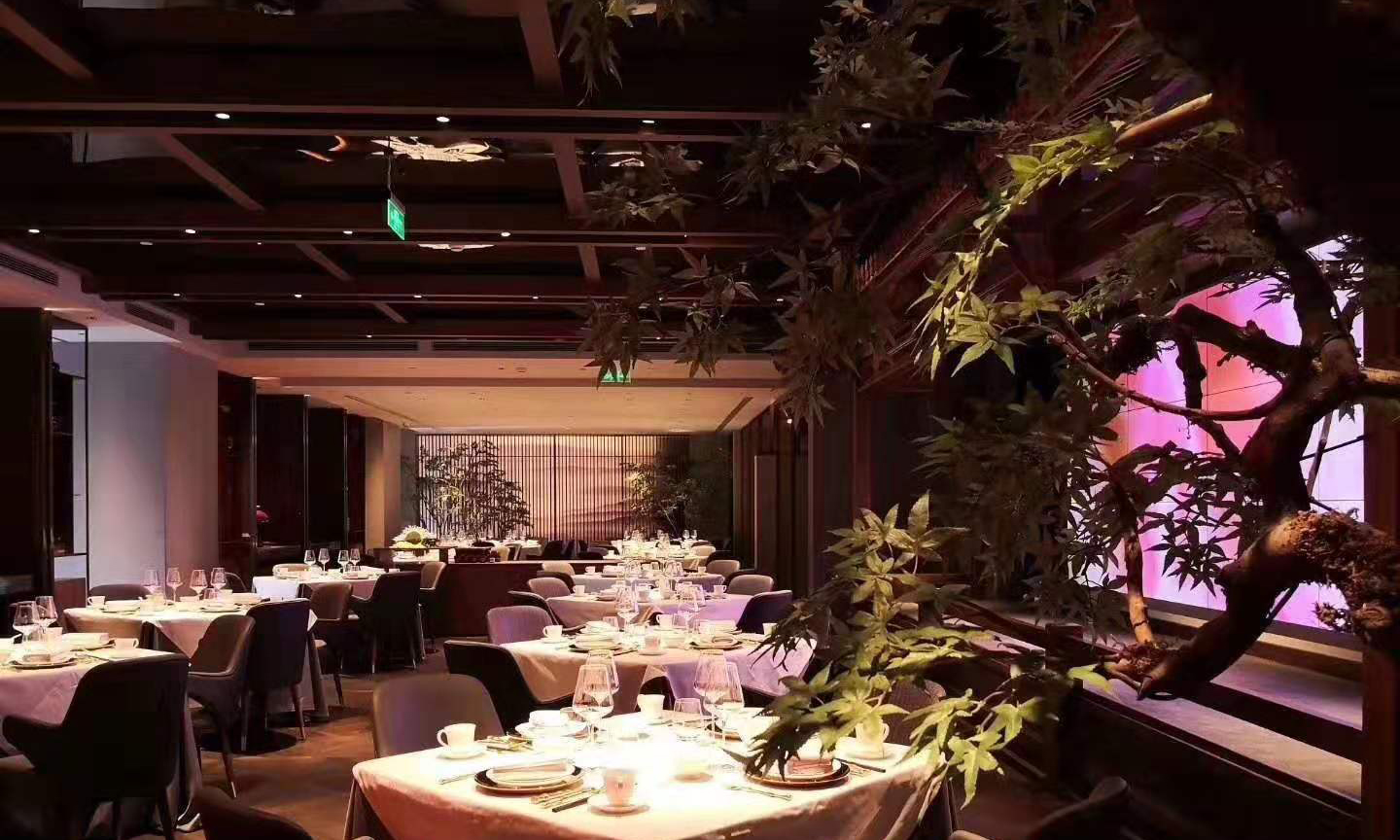

Case pictures:


俏江南 门店(图1)


俏江南 门店(图2)

                                 South Beauty Store

                                    Lens name: 4525 (Hotel)

                                    Applicable place: hotel, restaurant


俏江南 门店(图3)

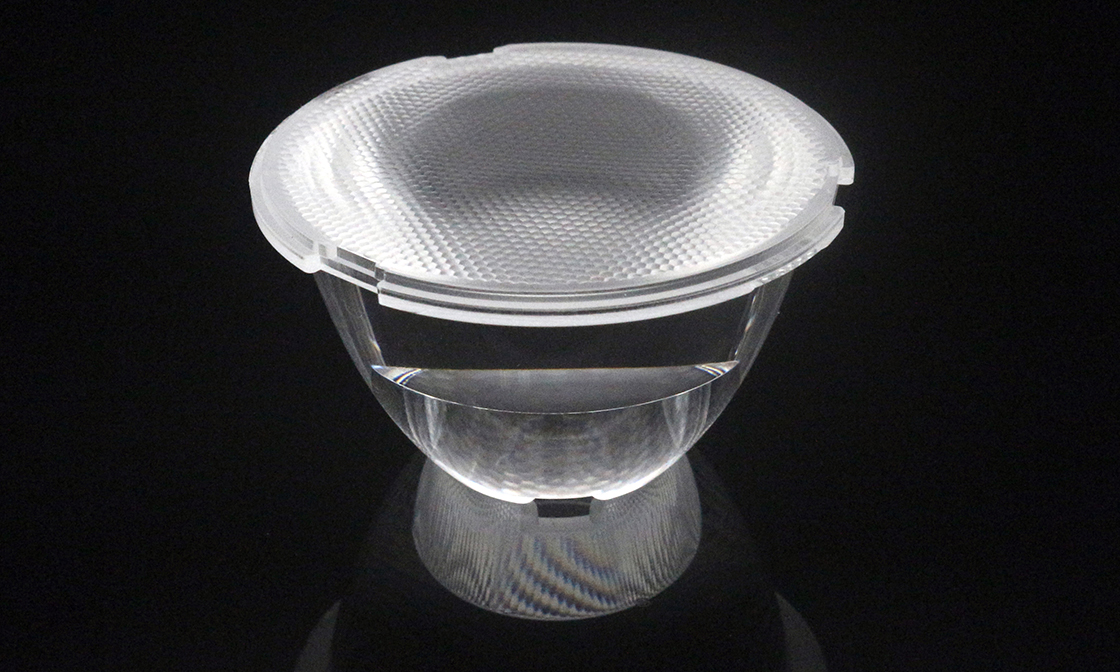

                                                      Lens picture: 4525



          俏江南 门店(图4)

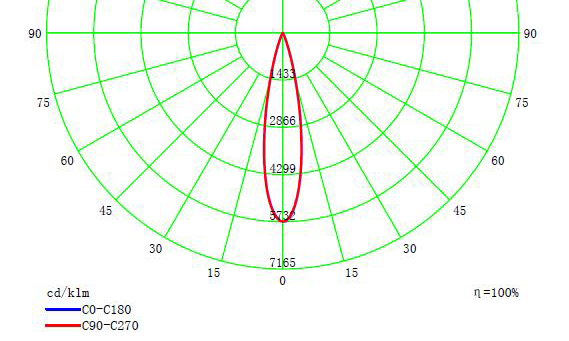

                                                Lens light distribution curve




Lens parameters:

Diameter: Ø45mm height: 25 mm



Angle: 15 ° / 24 ° / 36 ° / 60 °

Material: PMMA

Efficiency: 88%


Product Code

FWHM

Material

2696

12°

PMMA

3274

12°

PC

2632

15°

PMMA

3047

15°

PC

2534

24°

PMMA

3097

24°

PC

2533

35°

PMMA

3096

35°

PC

2905

60°

PMMA
